General Tools VB10 3-Axial USB Vibration Meter

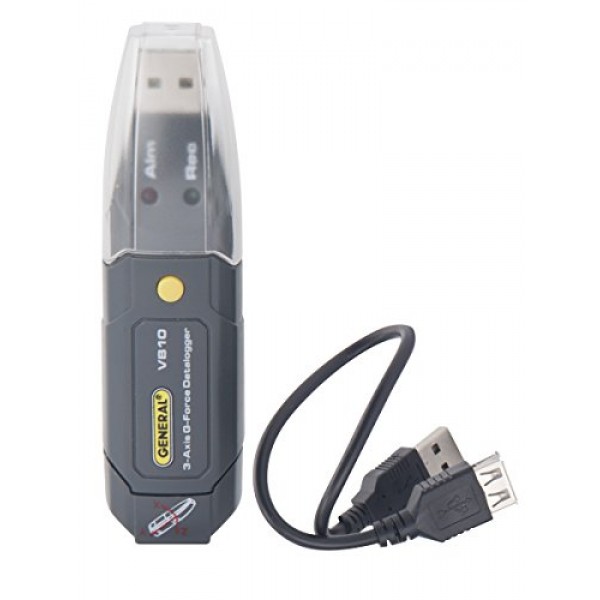

General Tools & Instruments VB10 3-Axial USB Vibration Meter is ideal for assessing the health and diagnosing performance problems of rotating machinery. Slight changes in the axial accelerations of a motor over time can reveal whether the motor is running efficiently and even indicate whether it may fail in the future. The VB10 uses three components to collect and present vibration data: 1) a memory stick-sized USB data logger containing three precision accelerometers; 2) a pedestal for mounting the logger on an operating piece of equipment; and 3) a powerful Windows-compatible graphics application. Once the logger has been dismounted, plugging it into a computer's USB port automatically imports hours of vibration, motion and tilt data to the application. Mountable memory stick (data logger) uses three accelerometers to precisely measure acceleration of operating equipment on x, y and z axes. Data logging software supplied on mini-disc stores up to 327,600 data points in flash memory. Plug-and-play USB 2.0 interface; no need for cables, cradles or docks. Mounting pedestal with magnets and three screw holes. PC interface/analysis software can download recorded data or acquire real-time data or real-time frequency data. Software is used to set system clock, operating mode (normal, time-triggered or motion measuring), sampling rate and axial high/low alarm thresholds. Powered by high-capacity, long-life, non-rechargeable Li-ion battery.

• Mountable memory stick (data logger) uses three accelerometers to precisely measure acceleration of operating equipment on x, y and z axes
• Data logging software supplied on mini-disc stores up to 327,600 data points in flash memory
• Plug-and-play USB 2.0 interface; no need for cables, cradles or docks; mounting pedestal with magnets and three screw holes
• PC interface/analysis software can download recorded data or acquire real-time data or real-time frequency data
• Powered by high-capacity, long-life, non-rechargeable Li-ion battery
