Fowler 52-225-114 Economy Depth Micrometer, 0-4 Measuring Range, ...

Fowler 52-225-114 Economy Depth Micrometer, 0-4" Measuring Range, 0.001" Resolution, 4" Base

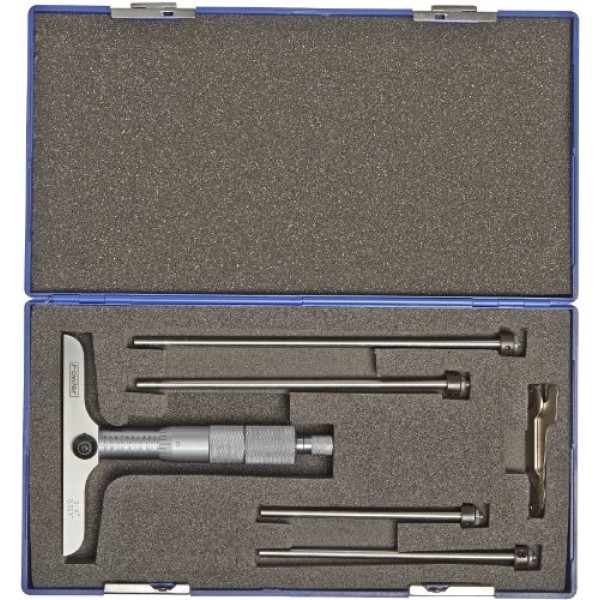

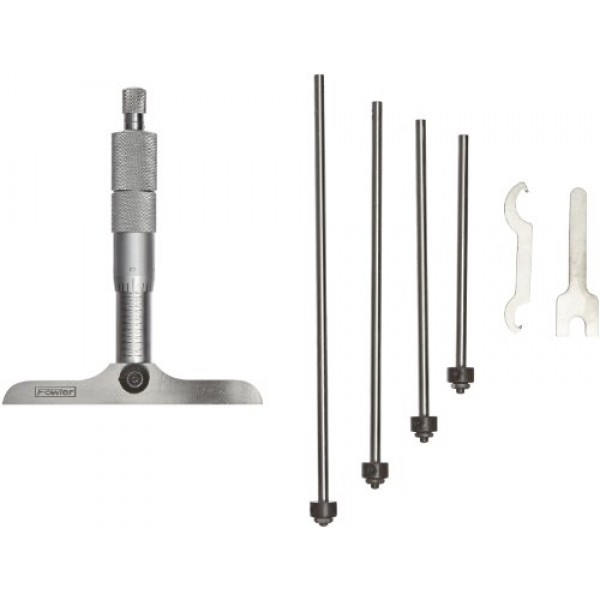

The Fowler Economy Depth Micrometers, depending on the model, have a measurement range of 0 to 4" or 0 to 6", a base of 2.5" or 4", and a resolution (or smallest graduation interval) of 0.001", with + or – 0.0002" of accuracy. The vernier scale provides precise measurements in fine units. Depending on the range of the model, the gauges include either or 0.176" diameter measuring rods. The units have a ratchet thimble and locking clamp for accuracy. The bases of the units are ground, hardened, and lapped for durability and accuracy. They have a satin chrome finish to reduce glare when reading measurements. They come with two wrenches and a hardened case. The gauges conform to Federal Accuracy specifications. Depth gauges are typically used in manufacturing, machining, and mechanical engineering. Comes with full one year warranty on material and workmanship. Contact Fowler, an American company, directly for warranty claims. Depth gauges are precision measuring instruments used to determine the depth of any shape that has a step, groove, or slot. These gauges often take the form of sliders that travel on a measuring beam or rods, are moved to position by hand, and then adjusted with a calibrated screw. The base of the gauge rests at the top of the shape whose recession is to be measured, while the beam or rods extend to the bottom of the recession to determine the measurement. Gauge position is read from a graduated scale, dial, counters, or an electronic display. Fowler manufactures inspection and measurement instruments such as electronic indicators, calipers, bore gages, and digital scales. The company, founded in 1946, is headquartered in Newton, MA.

• Measurement range for series of 0 up to 6", and resolution of 0.001"
• Vernier scale on barrel for precise measurements in fine units
• Includes 0.176" diameter measuring rods for flexibility
• Ratchet thimble and locking clamp for uniform pressure and accuracy
• Ground, hardened, and lapped base for durability and accuracy
