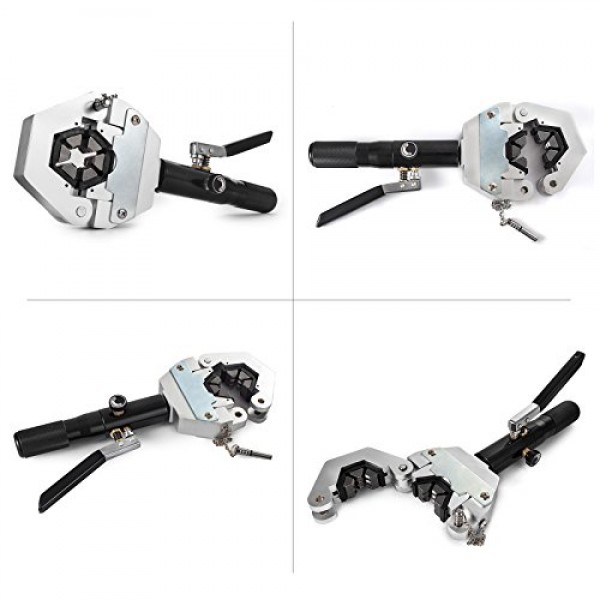

SHZOND 71500 A/C Hose Crimper Hand-held Hydraulic Hose Crimper with 3 Dies Covering Hose and 4 Reduced Barrier Manual Hose Crimper Kit for Repairing AC Hoses on the Vehicle (hydraulic hose crimper)

71500 A/C Hose Crimper Hand-held Air Conditioning Repair Hydraulic Hose Crimper with 3 Dies Covering Hose and 4 Reduced Barrier Manual Hose Crimper Kit

The hydraulic hose crimper can be used on both beaded and barbed hose fittings. The kit comes with a complete set of dies covering hose sizes #8, #10, #12 and reduced barrier #6, #8, #10 and #12. The dies snap quickly into the press fixture requiring no pins or screws. Kit comes in custom molded.The lightweight hand-held hydraulic hose crimper is very portable and ideal for shop and field applications.

Product Specification

Model: 71500

Type: Hose Crimper Tool

Quantity: 1 piece

Material: Steel

Product Size: 16.5"x13"x4.7"

Operating Instructions

1.Remove pin and open top yoke.

2.Select correct die set.

3.Insert the die into joke.

4.Place the fitting and hose in crimper and close top yoke.

5.insert pin securely.

6.Position the hose fitting into the center of the dies.

7.Turn the arbor screw clockwise until the bottom of the yoke ram meets the finish line(approximately 1/8" from the bottom yoke).

8.Check crimp for the correct compression; continue to tighten screw if additional compression is required.

9. Once crimp is complete,turn arbor screw counter clock-wise until it stops.

10. Remove holding pin and open yoke.

11. Remove hose assembly.

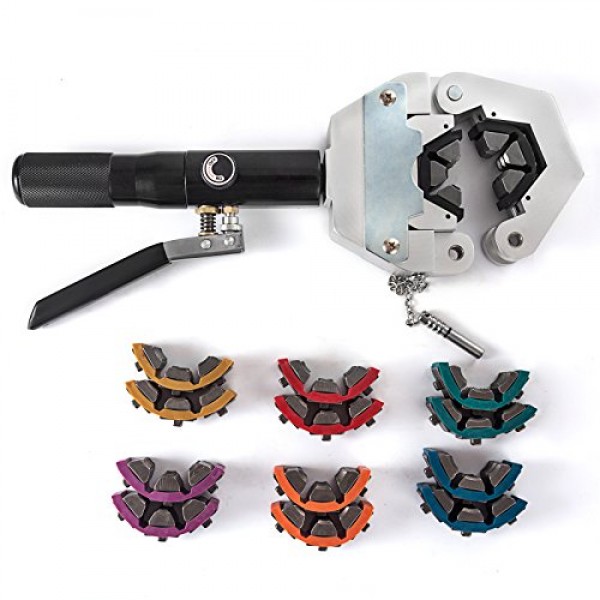

Package Content

001A Hydra - Krimp Pump

001B Hydra-Krimp Yoke

001C

6 Die Set - #6 (5/16")

Die Set - #8 (13/32") (Reduced Barrier)

8 Die Set - #8 (13/32")

10 Die Set - #10 (1/2")

12 Die Set - #12 (5/8")

6SRB Die Set - #6 (5/16") (Reduced Barrier)

10SRB Die Set - #10 (1/2") (Reduced Barrier)

12SRB Die Set - #12 (5/8") (Reduced Barrier)

Carrying Box

• Repair AC Hoses on the Vehicle.Automotive AC hose crimping tool for use creating barbed and beaded fittings
• The A/C hose crimper comes with a complete set of dies covering hose sizes #8, #10, #12 and reduced barrier #6, #8, #10 and #12
• The dies snap quickly into the press fixture requiring no pins or screws
• The lightweight hand-held hydraulic hose crimper is very portable and ideal for shop and field applications
• The set includes crimping tool, dies, and carrying box
