Wire Terminals Crimping Tool, Preciva Insulated Ratcheting Termina...

Wire Terminals Crimping Tool, Preciva Insulated Ratcheting Terminals Crimper Kit of AWG22-10 with 700PCS -27 types of Insulated Butt Bullet Spade Fork Ring Crimp Terminals Connectors

Product Features:
Thank you for choosing our Preciva high quality wire terminals crimping tool kit. It comes with a box of 700pcs wire terminals connectors which concluded 27 types. Please choose the appropriate terminals with the suitable sleeves, then you can make a perfect crimping.

Product Specifications:
◆Brand: Preciva
◆Model: RC680700

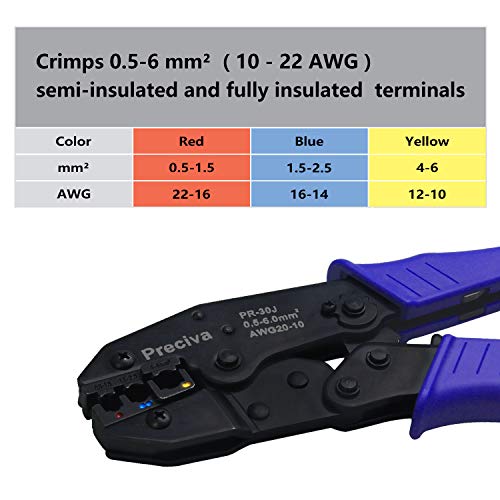

◆Crimping Size Range: 0.5-1.5mm²/1.5-2.5mm²/4-6mm²(AWG22-16/AWG16-14/AWG12-10)
◆Package size: 29x 14 x 6 cm
◆Weight:1140g
◆Material: Alloy steel, tinned copper,PVC insulation

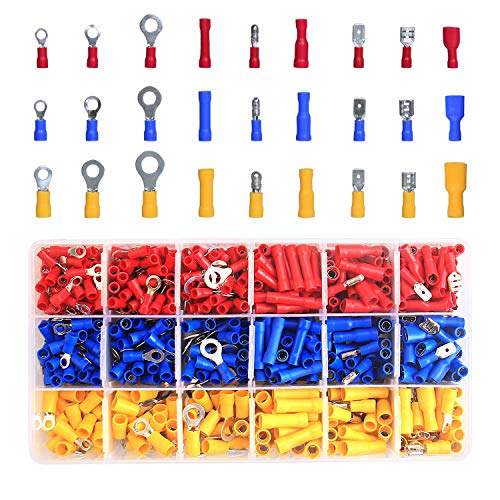

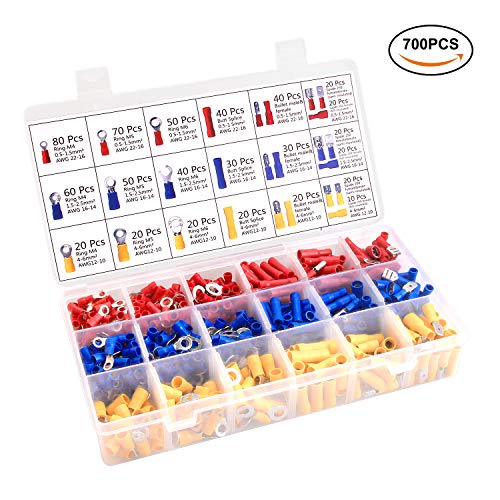

Specifications of the 700pcs Connectors:
Three colors for the connectors kit: RED, BLUE, and YELLOW.
Ring M4:
◆Red 80pcs-0.5-1.5mm²/AWG 22-16
◆Blue 60pcs-1.5-2.5mm²/AWG16-14
◆Yellow 20pcs-4-6mm²/AWG12-10

Ring M5:
◆Red 70pcs-0.5-1.5mm²/AWG 22-16
◆Blue 50pcs-1.5-2.5mm²/AWG16-14
◆Yellow 20pcs-4-6mm²/AWG12-10

Ring M6:
◆Red 50pcs-0.5-1.5mm²/AWG 22-16
◆Blue 40pcs-1.5-2.5mm²/AWG16-14
◆Yellow 20pcs-4-6mm²/AWG12-10

Butt Splice:
◆Red 40pcs-0.5-1.5mm²/AWG 22-16
◆Blue 30pcs-1.5-2.5mm²/AWG16-14
◆Yellow 20pcs-4-6mm²/AWG12-10

Bullet male and female:
◆Red 40pcs-0.5-1.5mm²/AWG 22-16(20pcs male and 20pcs female)
◆Blue 30pcs-1.5-2.5mm²/AWG16-14(15pcs male and 15pcs female)
◆Yellow 20pcs-4-6mm²/AWG12-10(10pcs male and 10pcs female)

Spade 250 male and female(sami-insulated):
◆Red 20pcs-0.5-1.5mm²/AWG 22-16(10pcs male and 10pcs female)
◆Blue 20pcs-1.5-2.5mm²/AWG16-14(10pcs male and 10pcs female)
◆Yellow 20pcs-4-6mm²/AWG12-10(10pcs male and 10pcs female)

Spade 250 female (full insulated):
◆Red 20pcs-0.5-1.5mm²/AWG 22-16
◆Blue 20pcs-1.5-2.5mm²/AWG16-14
◆Yellow 10pcs-4-6mm²/AWG12-10

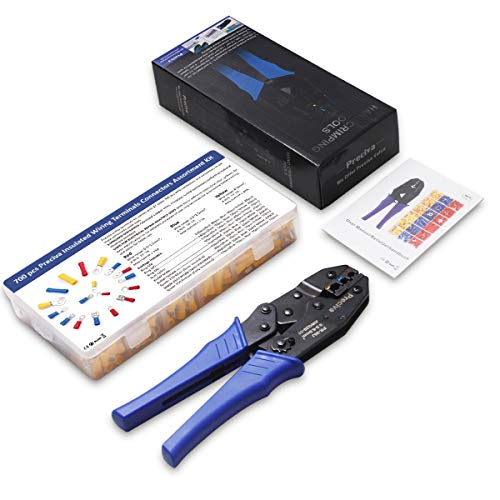

Package included:
◆1x wire crimping plier tool
◆1x 700pcs wire terminals connectors assortment kit
◆1x user manual

• [HIGH QUALITY MATERIAL]: This Wire crimping plier kit is made of high quality Alloy steel. It is a high strength hand tools for your home improvement.

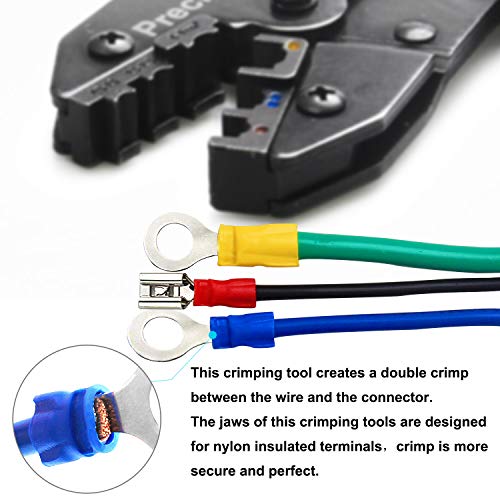

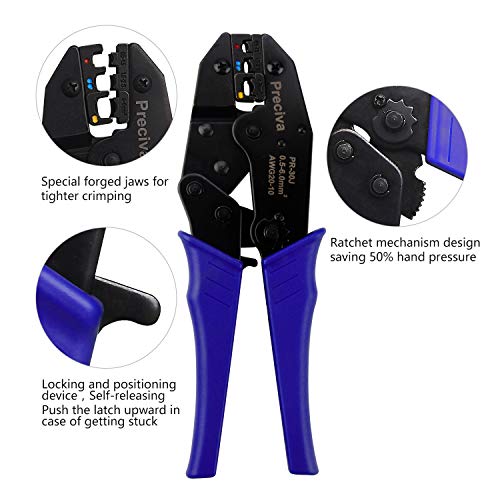

• [RATCHETING DESIGN]:There is a ratcheting mechanism design for this Insulated terminals crimping tool, one-hand operation could make a perfect crimp. And you can take less strength.
• [CRIMPING WIRE SIZE AWG22-10]: The crimping size range from AWG22-10. There will be a widely application for this crimping tool.
• [BONUS 700PCS CONNECTORS]: It comes with a box of 700pcs- 27 types of wire terminals connectors. RED for (0.5-1.5mm² /AWG 22-16), BLUE for (1.5-2.5mm² /AWG 16-14), YELLOW for (4-6mm² /AWG 12-10). Multiple Choices for the connectors, you can find what you want.
• [AFTER SALES SERVICES]: Respond your email within 24hours and one-year warranty(return or refund) for our crimper kit. Your customer satisfaction is guaranteed.
