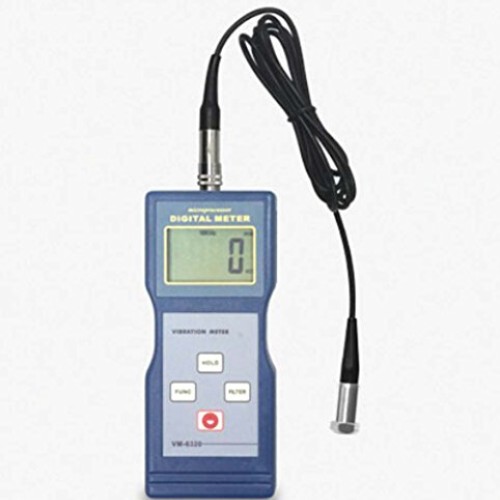

SSEYL Landtek VM6320 Vibration Meter VM-6320 Digital Vibration Meter

We need about 3 business days to prepare it for you and will send it to you by FedEx, UPS or DHL service. It will take about 6 days for you to get it.

Applications:

Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery. Specifically designed for present measuring various
mechanical vibration. So as to provide the data for the quality control, run time and equipment upkeep. Feature:

*In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
*Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
*Individual high quality ccelerometer for accurate and repeatable measurements.
*Optional headphones for use as electronic stethoscope.
*Bearing condition monitoring function.
* Sensor:Piezoelectric Accelerometer
*Measuring Range:Acceleration: Acceleration:0.1~200 m/s² Equivalent Peak
Velocity: 0.01~200 mm/s True RMS
Displacement: 0.001~2.0 mm Equivalent Peak-peak
*Frequency Range: Acceleration:10 Hz ~ 1k Hz 10 Hz ~ 10k Hz
Velocity: 10 Hz ~ 1k Hz
Displacement: 10 Hz ~ 1k Hz
*Accuracy: < 5 %
*Analogue Output:AC Output 0~2.0 V Peak Full Scale (Load Resistance: Above 10k)
*Power Off:Manual Power Off or Auto Power Off
*Battery Indicator: Low Battery Indicator
*Data Output:USB, RS-232, Bluetooth
*Operating Conditions:Temperature: 0~50 °C Humidity:<90 %RH
*Power Supply:4 x 1.5V AA size (UM-3) Battery
*Dimensions:160 x 68 x 32 mm
*Weight:181 g (Not Including Batteries)

• Accuracy:< 5 %
• Power Supply:4 x 1.5V AA size (UM-3) Battery
• Operating Conditions:Temperature: 0~50 °C Humidity: <90 %RH
• Dimensions:160 x 68 x 32 mm
