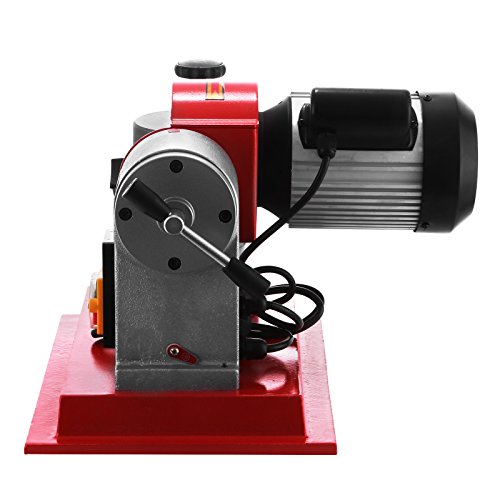

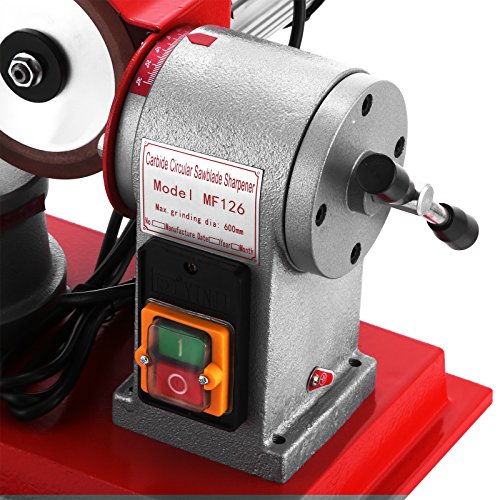

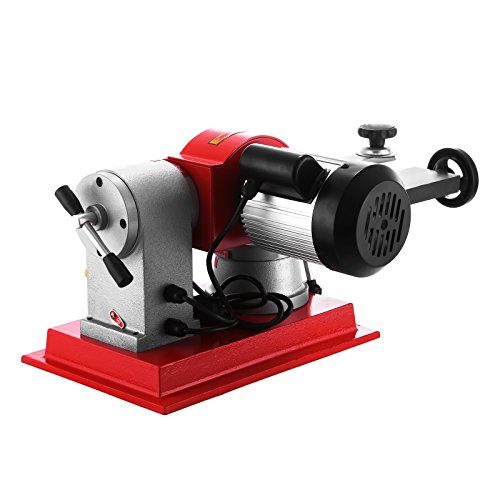

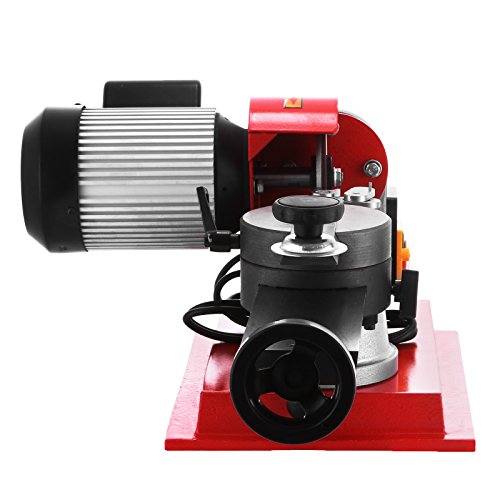

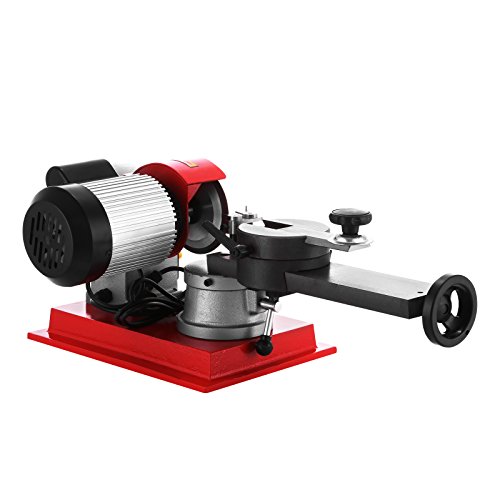

BestEquip Round Circular Saw Blade Grinder Machine 110V 370W Rotary Angle Mill Sharpener 125mm Electric Saw Blade Sharpener Machine for Sharpening Carbide Tipped Saw Blades

Method of operation:
First, loosing the fascia, then adjust the angle of grinding blade and fasten. Second, adjusting of center axle
1) Rotating the center axle to the grinding blade
2) Pushing the center axle to the right
3) Installing the saw blade, rotate the wheel and decide the position of grinding surface saw teeth
4) Rotating the rotation table to ensure the angle of grinding blade.
5) the cross angle between the grinding surface and work surface is about 5° Third, adjusting of positioning assembly

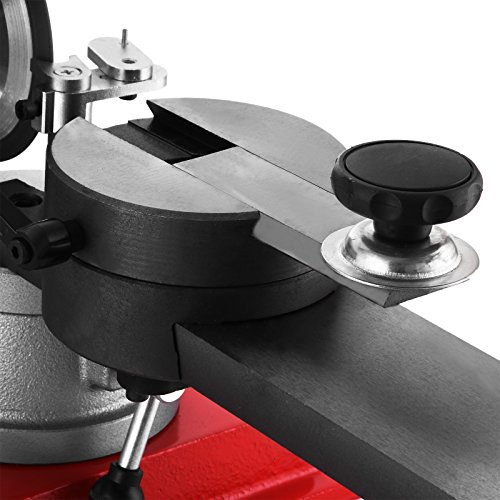

1) Adjusting the saw blade to the best grinding position, rotating the positioning frame and fascia,

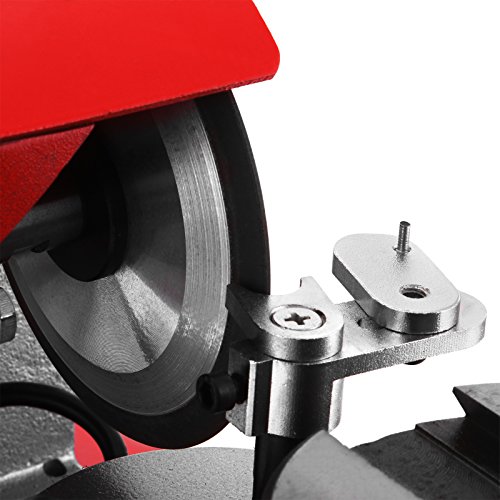

2) Adjusting positioning pin to the proper base of saw teeth and leave gap of grinding quantity, fasten the fixed screw
Fourth, adjusting the center axle to the same gap of grinding quantity to the right
Last, when all the parts are fastened, the saw blade supported with hand will be grinded

Item Specifications
Power: 370W
Voltage: 110V
Net Weight: 66.14lbs (30kg)
Running Speed: 2850rpm
Adjusting Angle Of The Wheel: ±20°
Handle Turning Angle: 30 Degrees From Left And 45 Degrees From Right
Working Diameter: 80-700mm
Grinding Wheel Size: 4.92" (125mm)
Bore Size Of Grinding Wheel: 1.26" (32mm)
Sanding Wheel Dimensions: 4.92" X 0.39" X 1.26"X0.2" X 0.08" (125 X 10 X 32x5x2mm)
Product Dimension: 30.3"X16.93"X11.81"(770 X 430 X 300mm)
Package Dimension: 16.93"X16.93"X13.58" (430 X 430 X 345mm)

Package

Main machine x 1

Sanding wheel x 1

Fixed ring x 2

Saw Centering x 5

Reverse screw cap x 1

Open-end wrench x 1

Cross screwdriver x 1

Allen wrench x 1

• Saw blade sharpener working diameter: 3.15"-27.5".Grinding Wheel Size: 4.92".Running Speed: 2850RPM
• Handle Turning Angle: 30 degrees from left and 45 degrees from right
• Saw blade grinder machine with a turntable, easy to adjust the cutting edge of the feed angle. Its fascia can support the teeth of saw blades and other parts in order to prevent jumping and improve grinding quality
• Round Circular Saw blade grinder machine is suitable for grinding all kinds of super-hard alloy saw blades, with adjustable surround-shaped pallet to hold the saw blade or other abrasive pieces
• The machine is designed for sharpening various kinds of carbide tipped saw blades. It's also suitable to grinder other material, such as plastic, wood, aluminum alloy for different purpose like furniture manufacturing, decoration etc.
