AmScope H100 Handheld Stand Measuring Microscope, 100x Magnificati...
AmScope H100 Handheld Stand Measuring Microscope, 100x Magnification, 17mm Field of View, Includes Pen Light

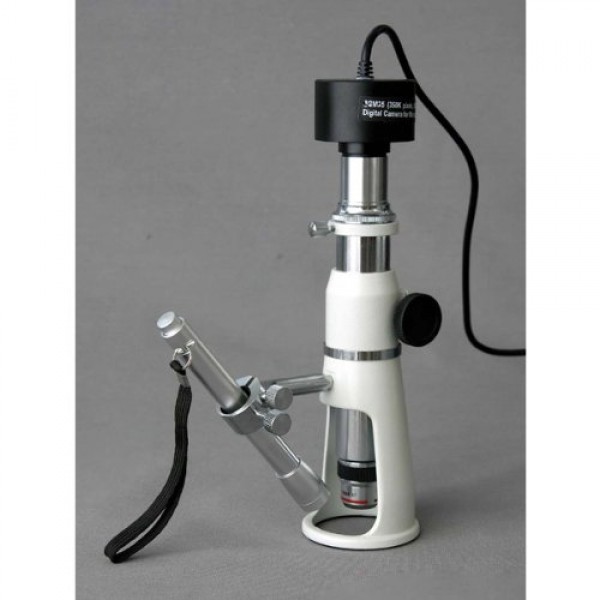

The AmScope H100 handheld stand microscope has 100x magnification, and reticle with a 100-unit measuring range and 0.01 unit reticle for measuring the thickness, height, or depth of specimens. The microscope has a 10x widefield eyepiece and a 10x achromatic objective. It has a 17mm field of view and a 30mm working distance. Achromatic lens coatings provide color correction to ensure full contrast. An adjustable penlight attached to the base can be adjusted to provide hands-free illumination (requires two AAA batteries, sold separately). Metal construction provides durability for field and classroom applications. The microscope is 8-1/4 x 2-1/2 inches (H x W, where H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right.) Handheld stand microscopes, sometimes called shop microscopes, are used in field, lab, and quality control applications, and in home and educational settings.
|Field of view||17mm|
|Measuring range||100 units|
|Dimensions||8-1/4 x 2-1/2 inches (H x W)|
H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right.
Microscopes are instruments used to enhance the resolution of an object or image. Types include compound, stereo, or digital. Compound microscopes use a compound optical system with an objective lens and an eyepiece. Stereo microscopes show object depth in a three-dimensional image. Digital microscopes are used to display an image on a monitor, rather than looking through a lens. Microscopes can have monocular (one), binocular (two), or trinocular (three) eyepieces, with varying magnification abilities. Magnification ability refers to the size of an image. Resolution, also known as resolvant power, refers to the clarity of the image. The interaction between field of view (FOV), numerical aperture (NA), and working distance (WD) determines resolution. Microscopes can control magnification through a fixed focus, or through a range of adjustments. They can also utilize LED, fluorescent, and mirror light sources to help control viewing capabilities. Microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science, and veterinary industries.
United Scope manufactures microscopy equipment and accessories under the brand name AmScope. The company, founded in 1996, is headquartered in Irvine, CA.
What's in the Box?
- AmScope microscope stand body
- 10x objective
- WF10x eyepiece
- Handheld measuring microscope with a 100 unit measuring range and 0.01 reticle unit is used to measure objects in field, lab, and quality control applications
- 100x magnification, 17mm field of view, and 30mm working distance
- Achromatic lens coatings provide color correction to ensure full contrast
- Adjustable penlight illuminator is attached to base and can be adjusted to provide hands-free operation (requires two AAA batteries, included)
- Metal construction provides durability for field and classroom applications
